Metal Cutting Horizontal Band Saw Machine Large Band Saw Gantry
G42130
Feature:
1. Working light
2. Laser project

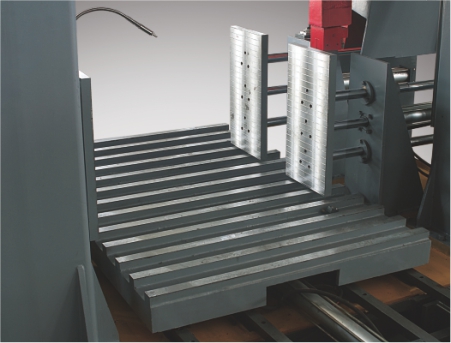

3. Hydraulic shuttle table feeding
4. Hydraulic blade tension
| Product parameters |
| Model Name | New | CH-1300 |
| Original | G42130 |
| Max.cutting | Round | 1300mm |
| capacity | Quadrate | 1300×1300mm |
| Saw blade | Speed | 15~60 m/min (inverter) |
| Size | 67×1.6×11180mm |
| Guides | Carbide and bearing blade guides |
| Cleaning | Wire brush & flood coolant |
| Tension | Hydraulic |
| Motor output | Blade | 15kw |
| Hydraulic | 3.75kw |
| Coolant | 0.09kw |
| Work feeding | Hydraulic shuttle table |
| Work Vise | Hydraulic |
| Machine Weight | 11000kg |
| Machine Size(L×W×H) | 5050×2250×3380 |
| Transmission | Gear reducer |
| Standard Equipments |
| 1. Blade cleaning brush. |
| 2. Working light |
| 3. Saw frame height selector gauge |
| 4. One piece of bi-metal saw blade. |
| 5. One set of tools with tool box |
| 6. Roller table 2M long |
| 7. Hydraulic blade tension |
| 8. Laser projector |
| 9. Inverter |
FAQ
1. Can I have your quotation?
First, please offer us the information of your material and size.
Without the parameter, we are not able to recommend the suitable
machine.
2. Do you have overseas service?
No, but we normally help our customer to solve the problem by
phone, email, skype and video. We offer one year warranty, within
one year, if the component of the machine broken, we can offer the
component freely, but the delivery fee should be paid by client.
3. What the voltage and hertz in your country?
In China, the voltage is 380V 3phase the hertz is 50Hz, and we can
change voltage and hertz according to your requirement.
4. How about the payment terms?
T/T 30% deposit, and the balance against the copy of B/L.
