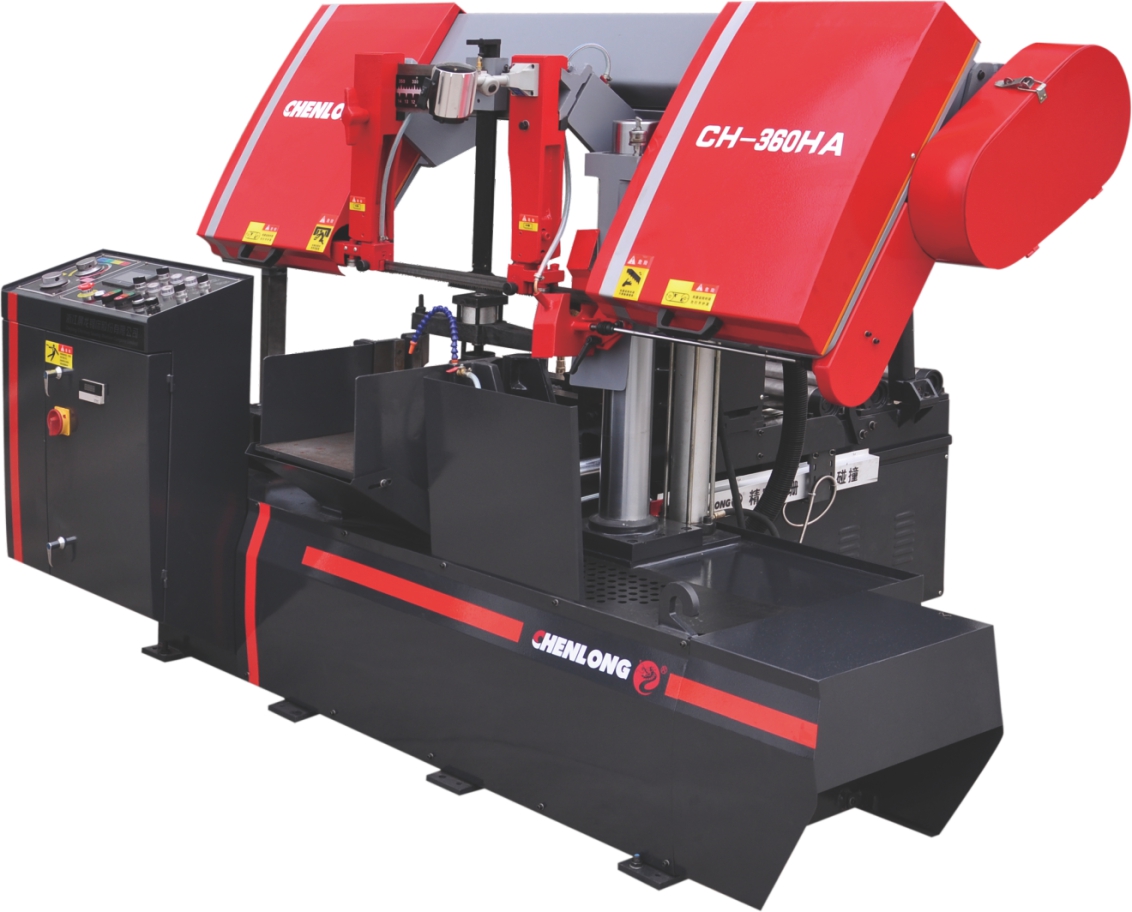

Metal Working Huge Horizontal Band Sawing Machine Bundle Cutting
CH-360HA
Function:
1. Inverter can control the blade line speed
2. Automatic feeding
3. Automatic work height control
| Product parameters |
|
| Model Name | New | CH-360HA (Double Column Fully Auto) |
| Original | |
| Max.cutting | Round | 360mm |
| capacity | Quadrate | 360×360mm |
| Saw blade | Speed | 20 to 80 m/min (inverter) |
| Size | 34×1.1×4420mm |
| Guides | Carbide and bearing blade guides |
| Cleaning | Power wire brush & flood coolant |
| Tension | Hydraulic |
| Motor output | Blade | 4kw |
| Hydraulic | 0.75kw |
| Coolant | 0.06kw |
| Multiple feed | 400mm × 9 times |
| Work Vice | Hydraulic |
| Gross Weight | 1880kg |
| Packing Size(L×W×H) | 2600×2300×1780 |
| Standard Equipment: |
| 1. Power blade cleaning brush. |
| 2. Working light. |
| 3. Fast approaching device. |
| 4. One piece of bi-metal saw blade. |
| 5. One set of tools with tool box |
| 6. NC control |
| 7. Automatic chip conveyor |
| 8. Roller rack 2M long |
| 9. Bunddle cutting device |
FAQ
1. Can I have your quotation?
First, please offer us the information of your material and size.
Without the parameter, we are not able to recommend the suitable
machine.
2. Do you have overseas service?
No, but we normally help our customer to solve the problem by
phone, email, skype and video. We offer one year warranty, within
one year, if the component of the machine broken, we can offer the
component freely, but the delivery fee should be paid by client.
3. What the voltage and hertz in your country?
In China, the voltage is 380V 3phase the hertz is 50Hz, and we can
change voltage and hertz according to your requirement.
4. How about the payment terms?
T/T 30% deposit, and the balance against the copy of B/L.
