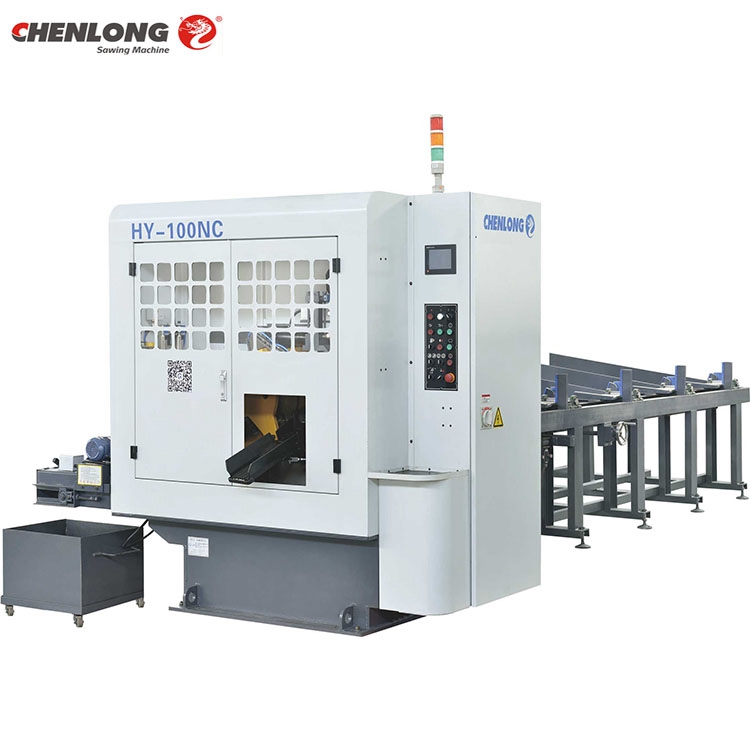

HY-100NC PLC Control Circular Saw Machine For Metal Cutting

    Buy cheap HY-100NC PLC Control Circular Saw Machine For Metal Cutting from wholesalers

    Buy cheap HY-100NC PLC Control Circular Saw Machine For Metal Cutting from wholesalers
    • Buy cheap HY-100NC PLC Control Circular Saw Machine For Metal Cutting from wholesalers

    HY-100NC PLC Control Circular Saw Machine For Metal Cutting

    Ask Lasest Price
    Brand Name : CHENGLONG
    Certification : CE,ISO9001,ISO14001,OHSAS18000
    Supply Ability : 5000 Set/Sets per Year
    Price : Negotiable
    Delivery Time : 40workdays
    • Product Details
    • Company Profile

    HY-100NC PLC Control Circular Saw Machine For Metal Cutting

    CHENGLONG CNC Circular Saw Machine Panel Saw Metal Cutting HY-100NC


    Features:


    1. Rigid structure makes machine strong and stable

    2. Servo motor feeding cut-off and bar fee bring precision finish surface

    3. 5 times faster than cutting traditional band saw machine


    Product parameters
    Max cutting capacity100mm
    Min. cutting capacity20mm
    TCT saw blade dia.360mm×2.6t
    HSS saw blade dia.360mm ×2.6t
    Cooling method

    Oil mist cooling and lubrication

    (Italian ILC blade lubrication system)

    Main motor7.5kw(4p)
    Spindle speed0~130RPM
    Blade feeding modeServo control
    Blade retraction speed100mm/s
    Blade feeding speed0~80mm/s
    Workpiece feedingServo motor drive
    Workpiece feeding speed400mm/s(rated speed); 600mm/s(Max. speed)
    Workpiece clamping:

    Front vices clamping include horizontal and top clamping

    back vice clamping is only horizontal clamping

    (back vice top clamping is optional equipment)

    Cut off length:>10mm
    Stub bar setting range8~80mm

    Workpiece length

    (which could be on the supporting rack):

    3500~6500mm

    Supporting rack loading capacity3000kgs
    PLC control
    Machine weight2250kgs(including the workpiece supporting rack)

    HY-100NC PLC Control Circular Saw Machine For Metal Cutting
