Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic

    Buy cheap Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic from wholesalers

    Buy cheap Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic from wholesalers
    • Buy cheap Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic from wholesalers

    Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic

    Ask Lasest Price
    Brand Name : CHENLONG
    Certification : CE,ISO9001,ISO14001,OHSAS18000
    Price : $20,000.00 - $50,000.00 / Set
    Supply Ability : 500 Piece/Pieces per Month
    Delivery Time : 40workdays
    • Product Details
    • Company Profile

    Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic

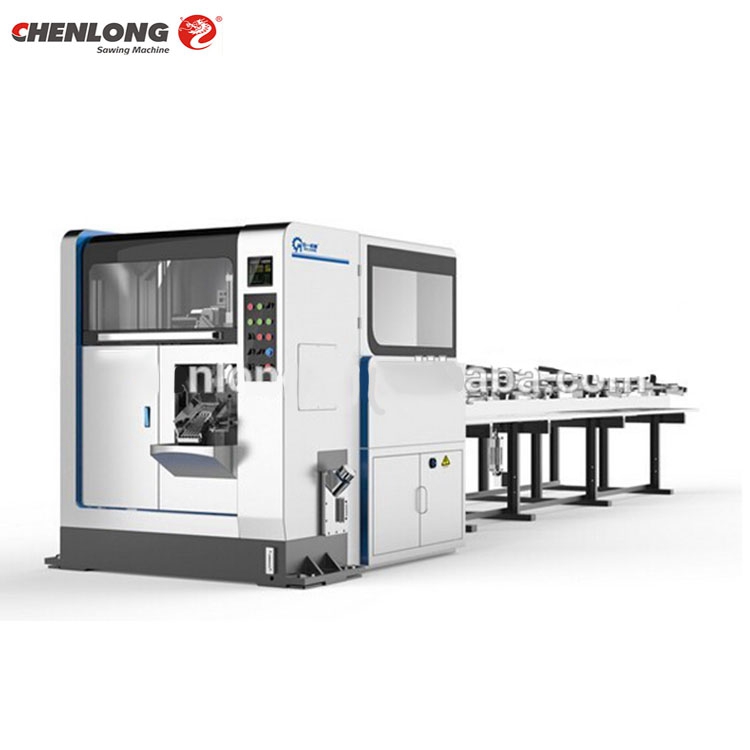

    CHENLONG CNC High-Speed Circular Vertical Saw Machine


    Product parameters
    Max. cutting capacity:65mm
    Min. cutting capacity:8mm
    TCT saw blade dia.:250mm×2t; 280mm ×2t; 285mm ×2t
    HSS saw blade dia.:250~285mm ×2t
    Cooling method:

    Oil mist cooling and lubrication

    (Italian ILC blade lubrication system)

    Main motor:7.5kw(4p)
    Spindle speed:0~152RPM
    Blade feeding mode:Servo control
    Blade retraction speed:100mm/s
    Blade feeding speed0~80mm/s
    Workpiece feeding:Servo motor drive
    Workpiece feeding speed:400mm/s(rated speed); 600mm/s(Max. speed)
    Workpiece clamping:

    Front vices clamping include horizontal and top clamping

    back vice clamping is only horizontal clamping.

    Cut off length:>10mm
    Stub bar setting range:8~80mm

    Workpiece length

    (which could be on the supporting rack):

    3500~6500mm

    Supporting rack loading capacity:
    Machine weight:2250kgs(including the workpiece supporting rack)

    Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic

    Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic

    Quality Hydraulic 4p Servo Control Cnc Circular Saw Cutting Machine Automatic for sale
